Pipeline - Editor Mode

PipelineEditor is a process orchestration tool built with vgraph, commonly used for arranging workflows. It has been implemented in scenes like Dorado project management pipelines. This is a pure JS component, imported as follows:

import { PipelineEditor } from '@visactor/vgraph';

const pipelineEditor = new PipelineEditor(options);

Configuration Options

Field	Type	Description
data	{ nodes: Record<string,unknown>[], edges: Record<string,unknown>[] }	Data in the graph. If empty, you can directly call pipelineEditor.initEmptyEditor().
container	string | HTMLDivElement	[Required] The pipeline container.
graphSize	number[]	[Required] The container size, in the format [width, height].
nodeSize	number[]	The node size, in the format [width, height].
layout	object	Layout settings.
layout.rankSep	number	The spacing between nodes in different columns.
layout.nodeSep	number	The spacing between nodes in the same column.
padding	number[]	The padding on four sides, in the format [top/bottom padding, left/right padding].
setDefaultNode	(nodeData: Record<string,unknown>) => Record<string,unknown>	Set the default node style, usage is the same as Graph's setDefaultNode.
setDefaultEdge	(edgeData: Record<string,unknown>) => Record<string,unknown>	Set the default edge style, usage is the same as Graph's setDefaultEdge.
setNodeStateStyles	(state: string, nodeData: Record<string,unknown>, node: Node)	Configure the state style based on the node's state, used with node.setState, usage is the same as Graph's setNodeStateStyles.
setEdgeStateStyles	(state: string, edgeData: Record<string,unknown>, edge: Edge)	Configure the state style based on the edge's state, used with edge.setState, usage is the same as Graph's setEdgeStateStyles.
onClickNode	(node: Node, e: GraphEvent) => void	The click event for a node.
shouldDrag	(e: GraphEvent, target: Node) => boolean	Whether to allow dragging the current node.
shouldDrop	(ev: GraphEvent, target: Node, relativeNode: Node, pos: 'L' | 'M' | 'R') => boolean	Whether to allow dropping the node at the current position. If false, the node returns to its original position.
onDropNode	(target: Node) => void	The event for when a node drag is completed.

Instance Methods

Instance Method	Return Value	Description
addNode	(relativeId: string, pos: 'L' | 'M' | 'R')	Add a node at a position relative to the node with id relativeId. L: left, M: bottom, R: right.
removeNode	(node: Node) => void	Remove a node.
moveNode	(node: Node, relativeNode: Node, pos: 'L' | 'M' | 'R') => void	Move a node to a position relative to another node.
updateNode	(node: Node, configs: Record<string,any>) => void	Update node data.
focusNode	(node: Node) => void;	Highlight and display a node.
exportData	(fn?: (entity: Node | Edge, type: 'node' | 'edge') => Record<string,any>) => { nodes: Record<string,unknown>[], edges: Record<string,unknown>[] }	Export the data in the graph.
getGraph	Graph	Get the Graph instance corresponding to the solution.

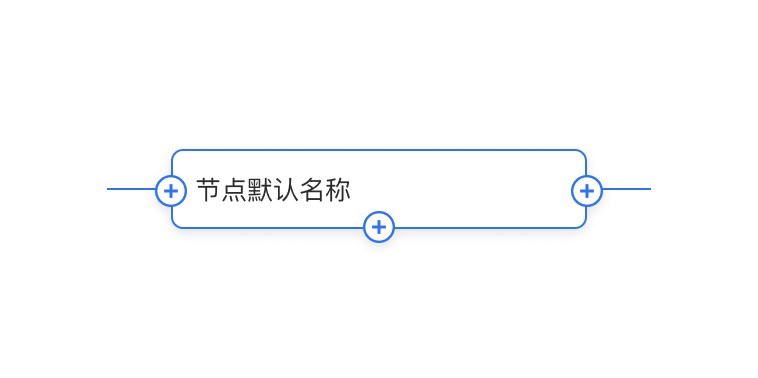

Built-in Nodes

To meet the needs of more scenarios, pipelineEditor does not specify node types, but provides recommended node registration methods for reuse. Users can also register nodes that better fit their business scenarios and set the type in the setDefaultNode configuration item to the name of the registered node. The recommended node registration method is as follows:

import { registerPipelineEditorNode } from '@visactor/vgraph';
registerPipelineEditorNode(options);

The configuration items for each part are as follows:

Field	Type	Description
addImage	string	The cdn of the image for the add node icon.
onClickImage	(e: ShapeEvent, nodeData: any)	The event for when a user clicks the add icon.
errorImage	string	The cdn of the image for the node error icon, which appears when the error parameter in the node data is true.

The node fields used by the built-in nodes are as follows:

Field	Type	Description
label	string	The node name.
error	boolean	If true, an error image is displayed after the node name.
