Tree Display

Requirements

A major feature of PivotTable is the tree-like rowHeader and columnHeader. Users can define the display format of the tree based on the following configuration:

rowHierarchyType / columnHierarchyType : Tree display mode
grid (supports row and column)

tree (only supports row)

grid-tree (supports row and column)

indicatorsAsCol: Whether indicators are displayed as list headers, default is true
rowExpandLevel / columnExpandLevel: Default expand level
When customizing rowTree / columnTree, you can use node.hierarchyState to set the collapse state of each node

Problem

From the above requirements, we might have some questions❓: \r

How to render a tree-like rowHeader / columnHeader, and what data is needed?
Different rowHierarchyType / columnHierarchyType will have different merged cells and expansion logic, how to handle it more elegantly?
How does the layout algorithm handle these types of HierarchyType

Source Code

In section 7.2 "Automatic Organization of Dimension Tree", we learned that in the setRecords method of the Dataset module, the dimension members rowKeys collected from the raw data are used to call **ArrToTree** to assemble the dimension tree, stored in **Dataset.rowHeaderTree**.

Subsequent PivotTable will continue to process based on rowHeaderTree, rendering the tree header. Let's take a look at the details of this entire process.

Dataset.rowHeaderTree / colHeaderTree

If the user passes a custom tree customRowTree/colHeaderTree, it is directly assigned to dataset.rowHeaderTree / colHeaderTree
Otherwise, use ArrToTree and ArrToTree1 to convert dimension members rowKeys and colKeys into a tree structure, and then assign values.

// packages/vtable/src/dataset/dataset.ts
export class Dataset {
    ...

    setRecords(records: any[] | Record<string, any[]>) {
        ...

        if (this.customRowTree) {
            this.rowHeaderTree = this.customRowTree;
        } else {
            if (this.rowHierarchyType === 'tree') {
                this.rowHeaderTree = this.ArrToTree1(...)
            } else {
                this.rowHeaderTree = this.ArrToTree(...)
            }
        }

        if (this.customColTree) {
            this.colHeaderTree = this.customColTree;
        } else {
            this.colHeaderTree = this.ArrToTree(...)
        }
    }
}

DimensionTree

It will be passed from dataset.rowHeaderTree / colHeaderTree or user custom header tree as a parameter to the DimensionTree class, instantiated to generate rowDimensionTree / columnDimensionTree

// packages/vtable/src/PivotTable.ts
export class PivotTable extends BaseTable implements PivotTableAPI {
    constructor(...) {
        ...

        const keysResults = parseColKeyRowKeyForPivotTable(this, options);
        let { columnDimensionTree, rowDimensionTree } = keysResults;

        ...

        if (!options.columnTree) {

            **columnDimensionTree = new DimensionTree(**
                (this.dataset.colHeaderTree as ITreeLayoutHeadNode[]) ?? [],
                ...
            );
        }

        if (!options.rowTree) {

            **rowDimensionTree = new DimensionTree(**
                (this.dataset.rowHeaderTree as ITreeLayoutHeadNode[]) ?? [],
                ...
            )

        }


    }
}

In the constructor function of the DimensionTree class, the core logic is in this.setTreeNode(this.tree, 0, this.tree). setTreeNode is a recursive function that will traverse the tree and process each node with setTreeNode.
Generate node id
According to **hierarchyType** configuration and **node.hierarchyState**, update the **level** attribute of the node (to be used for layout later), update the DimensionTree's totalLevel and size attributes

PivotHeaderLayoutMap

**layoutMap is one of the core parameters of PivotTable,** which will directly determine the layout, width, and height of the cells.

```Typescript // packages/vtable/src/PivotTable.ts export class PivotTable extends BaseTable implements PivotTableAPI { constructor(...) { ...

    **this.internalProps.layoutMap = new PivotHeaderLayoutMap**(
        this,
        this.dataset,
        columnDimensionTree,
        rowDimensionTree
    );
}

}



Let's see what the `PivotHeaderLayoutMap` class does:

1. **Determine the logic for merged cells and node collapse state**. The following four attributes will determine the display content and merged cell logic of `cornerHear`, `columnHear`, `rowHeader`

```Typescript
// packages/vtable/src/layout/pivot-header-layout.ts
export class PivotHeaderLayoutMap implements LayoutMapAPI {
    /**下面四份代表实际展示的 如果隐藏了某部分表头 那这里就会相比上面的数组少了隐藏掉的id 例如收hideIndicatorName影响*/
    _cornerHeaderCellIds: number[][] = [];
    private _columnHeaderCellIds: number[][] = [];
    private _rowHeaderCellIds: number[][] = [];
    private _rowHeaderCellIds_FULL: number[][] = []; //分页需求新增  为了保存全量的id  当页的是_rowHeaderCellIds

    // 记录单元格 HeaderData 对象
    cornerHeaderObjs: HeaderData[];
    columnHeaderObjs: HeaderData[] = [];
    rowHeaderObjs: HeaderData[] = [];
    ...
}

When rowHierarchyType is grid, the two-dimensional array _rowHeaderCellIds specifies the unique Id corresponding to each cell. If the Ids are the same, it indicates a merged cell situation. As shown in the left image below, Id:23 is a merged situation, and Id:27 is a non-merged situation. \r

When rowHierarchyType is tree, all dimensions will be displayed in the same column, _rowHeaderCellIds will be as shown in the figure below: \r

And node.hierarchyState will record the node's collapsed state

The specific logic for generating row header and column header cell data can be seen in this._addHeaders(), this._addHeadersForGridTreeMode(), and this._addHeadersForTreeMode().

// packages/vtable/src/layout/pivot-header-layout.ts
export class PivotHeaderLayoutMap implements LayoutMapAPI {
    ...

    constructor(...) {

        // 生成列表头单元格
        this._generateColHeaderIds();
        // 生成行表头单元格
        this._generateRowHeaderIds();
    }

    _generateRowHeaderIds() {
        if (this.rowDimensionTree.tree.children?.length >= 1) {
            if (this.rowHierarchyType === 'tree') {
                **this._addHeadersForTreeMode(...)**
            } else if (this.rowHierarchyType === 'grid-tree') {
                const startRow = 0;
                **this._addHeadersForGridTreeMode(...)**
            } else {
                **this._addHeaders(...)**
            }
    }
}

The logic of the three this._addHeadersXX() methods is similar, and they will combine with the dealHeaderXX() method to form recursive logic, traverse the tree, generate **HeaderData** type cell data, and perform appropriate storage.\r

Generate cornerHeadr cell data; set column width

// packages/vtable/src/layout/pivot-header-layout.ts
export class PivotHeaderLayoutMap implements LayoutMapAPI {
    ...

    constructor(...) {

        this.cornerHeaderObjs = this._addCornerHeaders(
          colDimensionKeys,
          rowDimensionKeys,
          this.columnsDefine.concat(...this.rowsDefine, ...extensionRowDimensions)
        );

        ...

        this.setColumnWidths();
    }
}

Create Scene Tree & Rendering

Create a scene tree, publish events, and celebrate!

scenegraph.createSceneGraph() actually belongs to the rendering engine (packages/vtable/src/scenegraph/scenegraph.ts), which is beyond the scope of this chapter, so it will not be analyzed in detail here.

// packages/vtable/src/PivotTable.ts
export class PivotTable extends BaseTable implements PivotTableAPI {
    constructor(...) {
        ...

        // 生成单元格场景树
        this.scenegraph.createSceneGraph();

        // 为了确保用户监听得到这个事件 这里做了异步 确保vtable实例已经初始化完成
        setTimeout(() => {
            this.fireListeners(TABLE_EVENT_TYPE.INITIALIZED, null);
        }, 0);
    }
}

Process Summary

Custom Header

在 VTable 自定义表头章节中，除了下面介绍了两种功能，还兼容了多种自定义维度树的 edge case，eg. 补全指标节点、自定义树不规则情况等。我们选取下面两种功能进行源码分析。

Custom Header Dimension Tree

Requirements

In certain business scenarios, the business side may expect the row and column dimension trees to be displayed exactly as specified. In this case, you can pass in the dimension trees using rowTree and columnTree to achieve this.

Source Code

Dataset
You can see that if the user passes a custom row header tree or column header tree, it is directly assigned to dataset.rowHeaderTree / colHeaderTree

export class Dataset {
    ...

    setRecords(records: any[] | Record<string, any[]>) {
        ...

        if (this.customRowTree) {
            this.rowHeaderTree = this.customRowTree;
        }
        if (this.customColTree) {
            this.colHeaderTree = this.customColTree;
        }
      }
    }
}

DimensionTree
You can see that if the user passes a custom row header tree and column header tree, the tree provided by the user will be directly used in new DimensionTree
In fact, it is not using dataset.rowHeaderTree / colHeaderTree to generate DimensionTree

// packages/vtable/src/PivotTable.ts
export class PivotTable extends BaseTable implements PivotTableAPI {
    constructor(...) {
        ...

        const keysResults = parseColKeyRowKeyForPivotTable(this, options);
        let { columnDimensionTree, rowDimensionTree } = keysResults;
    }
}

// packages/vtable/src/layout/layout-helper.ts
export function parseColKeyRowKeyForPivotTable(table: PivotTable, options: PivotTableConstructorOptions) {

    if (options.columnTree) {
        columnDimensionTree = new DimensionTree(
            **(table.internalProps.columnTree as ITreeLayoutHeadNode[]) ?? [],**
            ...
        );
    }
    if (options.rowTree) {
        rowDimensionTree = new DimensionTree(
            **(table.internalProps.rowTree as ITreeLayoutHeadNode[]) ?? [],**
            ...
        );
    }

    return {
        ...
        columnDimensionTree,
        rowDimensionTree
    };
}

The subsequent process is consistent with the "tree display" process, which is to generate layoutMap and create a scene tree

Custom Header Column Merging

Requirements

In the node configuration of custom rowTree and columnTree, there is a levelSpan field that can be used to specify the range of header cell merging, with a default value of 1.

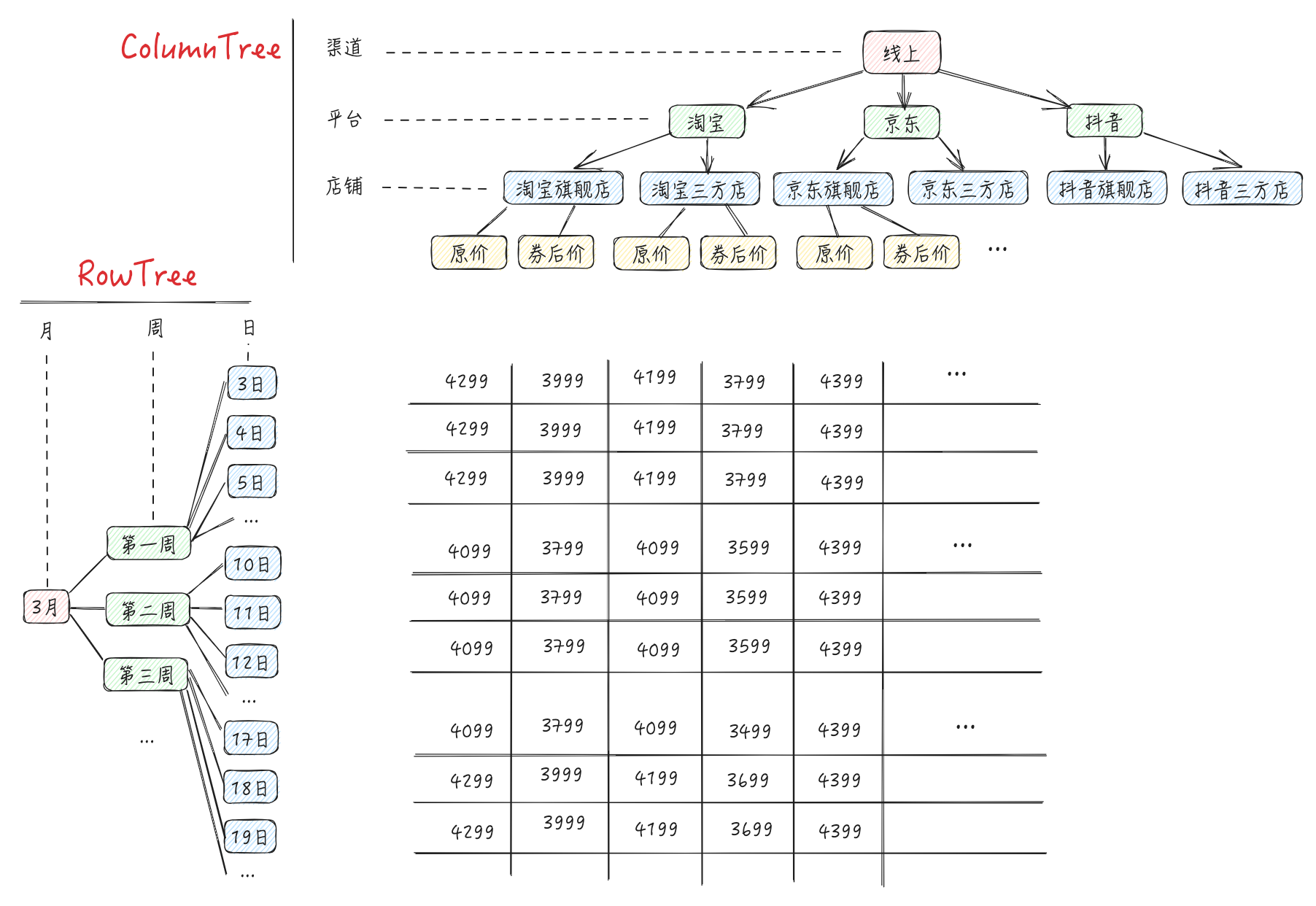

case1: Set "Taobao flagship store" with levelSpan: 2

case2: Set "Taobao" with levelSpan: 2

From the two cases above, it can be seen that nodes with levelSpan set will merge downwards the corresponding level of cells; their descendant nodes will render normally, but the total depth of the header remains unchanged, and nodes exceeding the depth will be hidden. The business side can set levelSpan as needed to render a more flexible custom header tree.

Source Code

DimensionTree

If columnTree is passed and levelSpan is set for a certain node, it will affect the logic of DimensionTree.setTreeNode.

You can see node.afterSpanLevel = node.afterSpanLevel + node.levelSpan
level: The actual level where the node is located
**afterSpanLevel**: Calculate the level in the case of node spanning (+spanLevel)**

PivotHeaderLayoutMap
It will affect the generation of this._columnHeaderCellIds. After traversing the column header tree through this._addHeaders and dealHeader, it is finally as shown in the figure below. \r

Implementation of Typical Interactions

Expand & Collapse Dimension Tree

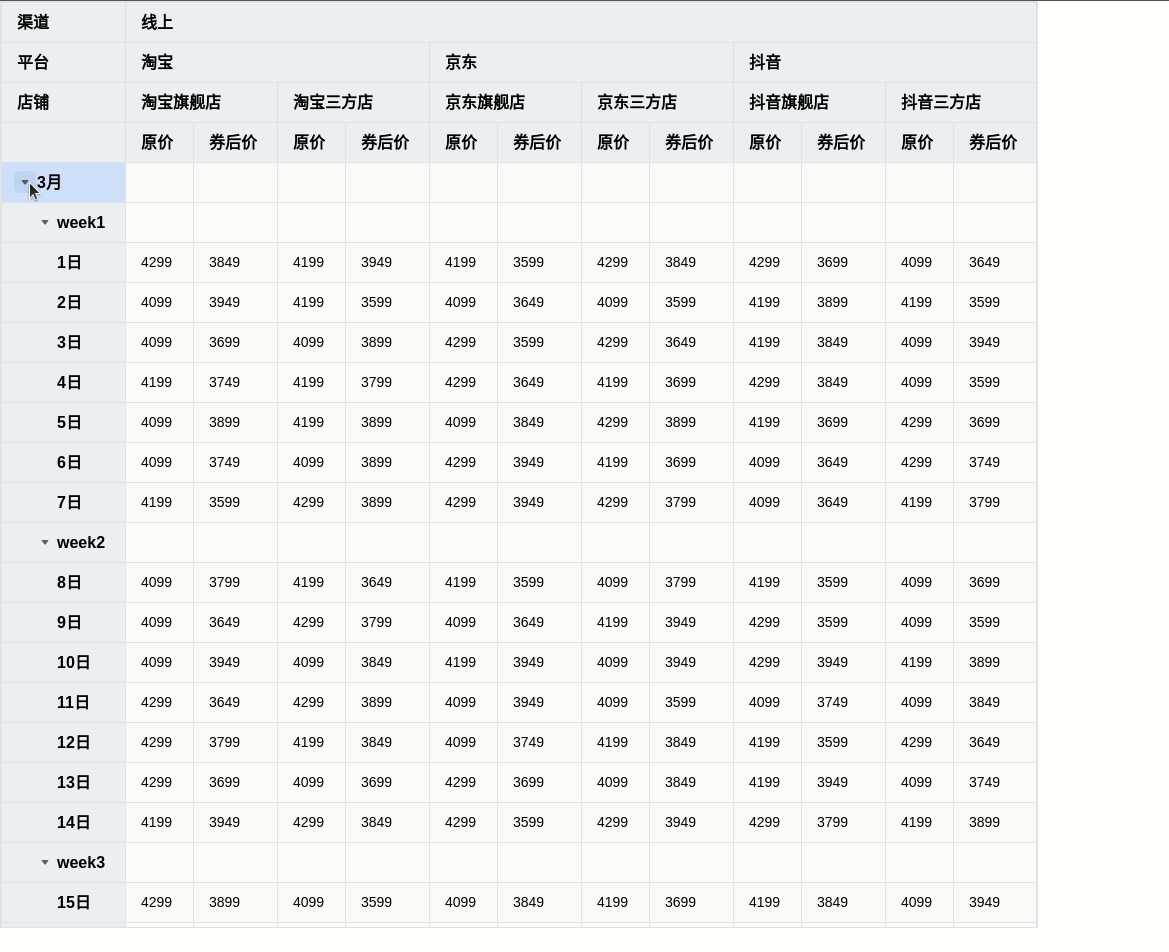

Interaction Effects

Source Code

We take the example of collapsing dimension tree nodes (HierarchyState from expand -> collapse) for analysis.

PivotTable.toggleHierarchyState

This method is the entry point. You can see: \r

Actually calls this._refreshHierarchyState()
After completion, publish the PIVOT_TABLE_EVENT_TYPE.TREE_HIERARCHY_STATE_CHANGE event

toggleHierarchyState(col: number, row: number, recalculateColWidths: boolean = true) {
    const hierarchyState = this.getHierarchyState(col, row);
    if (hierarchyState === HierarchyState.expand) {
        **this._refreshHierarchyState(col, row, recalculateColWidths);**
        **this.fireListeners(PIVOT_TABLE_EVENT_TYPE.TREE_HIERARCHY_STATE_CHANGE,** {
            col: col,
            row: row,
            hierarchyState: HierarchyState.collapse
        });
    }
    ...
}

PivotTable._refreshHierarchyState

The core logic can be seen as: \r

Call layoutMap.toggleHierarchyState() to get information about added, deleted, and modified rows
Finally, call this.scenegraph.updateRow() to trigger the scene tree to redraw the row

_refreshHierarchyState(col: number, row: number, recalculateColWidths: boolean = true, beforeUpdateCell?: Function) {

    ...
    // 更新hover图标
    this.stateManager.updateHoverIcon(col, row, undefined, undefined);

    const isChangeRowTree = this.internalProps.layoutMap.isRowHeader(col, row);
    // 获取 增、删、改 的行的信息
    const **result**: {
      addCellPositionsRowDirection?: CellAddress[];
      removeCellPositionsRowDirection?: CellAddress[];
      updateCellPositionsRowDirection?: CellAddress[];
      addCellPositionsColumnDirection?: CellAddress[];
      removeCellPositionsColumnDirection?: CellAddress[];
      updateCellPositionsColumnDirection?: CellAddress[];
    } = isChangeRowTree
      ? **(this.internalProps.layoutMap as PivotHeaderLayoutMap).toggleHierarchyState(col, row)**
      : (this.internalProps.layoutMap as PivotHeaderLayoutMap).toggleHierarchyStateForColumnTree(col, row);

    // 更新折叠图标
    this.scenegraph.updateHierarchyIcon(col, row);

    // 触发场景树更新行绘制
    **this.scenegraph.updateRow**(
        result.removeCellPositionsRowDirection,
        result.addCellPositionsRowDirection,
        result.updateCellPositionsRowDirection,
        recalculateColWidths
     );
}

PivotHeaderLayoutMap.toggleHierarchyState

You can see that the logic of this function is somewhat similar to the logic of the PivotHeaderLayoutMap constructor.

Reset rowDimensionTree
Call _addHeadersForTreeMode** **to traverse the tree and recollect _rowHeaderCellFullPathIds
Call diffCellAddress to collect information on added, deleted, and modified rows, and finally return

export class PivotHeaderLayoutMap implements LayoutMapAPI {
     // 点击某个单元格的展开折叠按钮 改变该节点的状态 维度树重置
     toggleHierarchyState(col: number, row: number) {

         this.rowDimensionTree.reset(this.rowDimensionTree.tree.children);
         this._rowHeaderCellFullPathIds_FULL = [];
         if (this.rowHierarchyType === 'tree') {
             // 递归树重新生成
             **this._addHeadersForTreeMode**(
                this._rowHeaderCellFullPathIds_FULL,
                0,
                this.rowDimensionTree.tree.children,
                [],
                this.rowDimensionTree.totalLevel,
                true,
                this.rowsDefine,
                this.rowHeaderObjs
             );
         }

         ...
         this._rowHeaderCellFullPathIds_FULL = transpose(this._rowHeaderCellFullPathIds_FULL);

         let diffCell: {
             addCellPositionsRowDirection?: CellAddress[];
             removeCellPositionsRowDirection?: CellAddress[];
             updateCellPositionsRowDirection?: CellAddress[];
             addCellPositionsColumnDirection?: CellAddress[];
             removeCellPositionsColumnDirection?: CellAddress[];
             updateCellPositionsColumnDirection?: CellAddress[];
         };
         if (this.rowHierarchyType === 'tree') {
             diffCell = diffCellAddress(
               col,
               row,
               oldRowHeaderCellIds.map(oldCellId => oldCellId[col - this.leftRowSeriesNumberColumnCount]),
               this._rowHeaderCellFullPathIds_FULL.map(newCellId => newCellId[col - this.leftRowSeriesNumberColumnCount]),
               oldRowHeaderCellPositons,
               this
             );
         }

         ...
         this.generateCellIdsConsiderHideHeader();

         ...
         return diffCell;
     }
}

Scenegraph.updateRow

The general logic is as follows: \r

Call updateRow() method to add or delete rows
Call this.recalculateColWidths() to recalculate column widths
Call this.component.updateScrollBar() to update the scrollbar
Finally call this.updateNextFrame() to re-render

Process Summary

The core logic is in PivotHeaderLayoutMap.toggleHierarchyState: it will recursively regenerate the tree to create new header tree cell information (_columnHeaderCellIds, _rowHeaderCellIds); and collect information on added, deleted, and modified rows.
Finally, re-render the table with the generated change information
